When the excavatorrotates 360°, its tail will not exceed the range of the track plate, and there is no need to worry that the body willincrease to the obstacle. Small size, sacrificethe tail weight space in exchange for greater operatingspace, flexible and convenient, adapt to a variety of working conditions.
New structure dodging shovel, increased height, wider shovel plate,auxiliary construction is more convenient and quick, improve work efficiency.
New structure dodging shovel, increased height, wider shovel plate,auxiliary construction is more convenient and quick, improve work efficiency.
The width adjustment range of the retractable walking frame is 1300-1500mm, which improves the stability of thewhole machine. The chassis expansion function enablesthe equipment to have better passability, and the chassisis extended during construction for better stability.
The H25 is equipped with a Japanese YANMAR engine, which meets the National lV, North American EPA4 and Euro V emission standards. Strongpower, reliable and durable, to meet the diversified power needs of customers.
The innovative three-pump system, based on the demanding, near-perfect matching technology of the engine and hydraulic system, uses an innovative three-pump system to increase power output, improve operational efficiency andreduce fuel consumption.

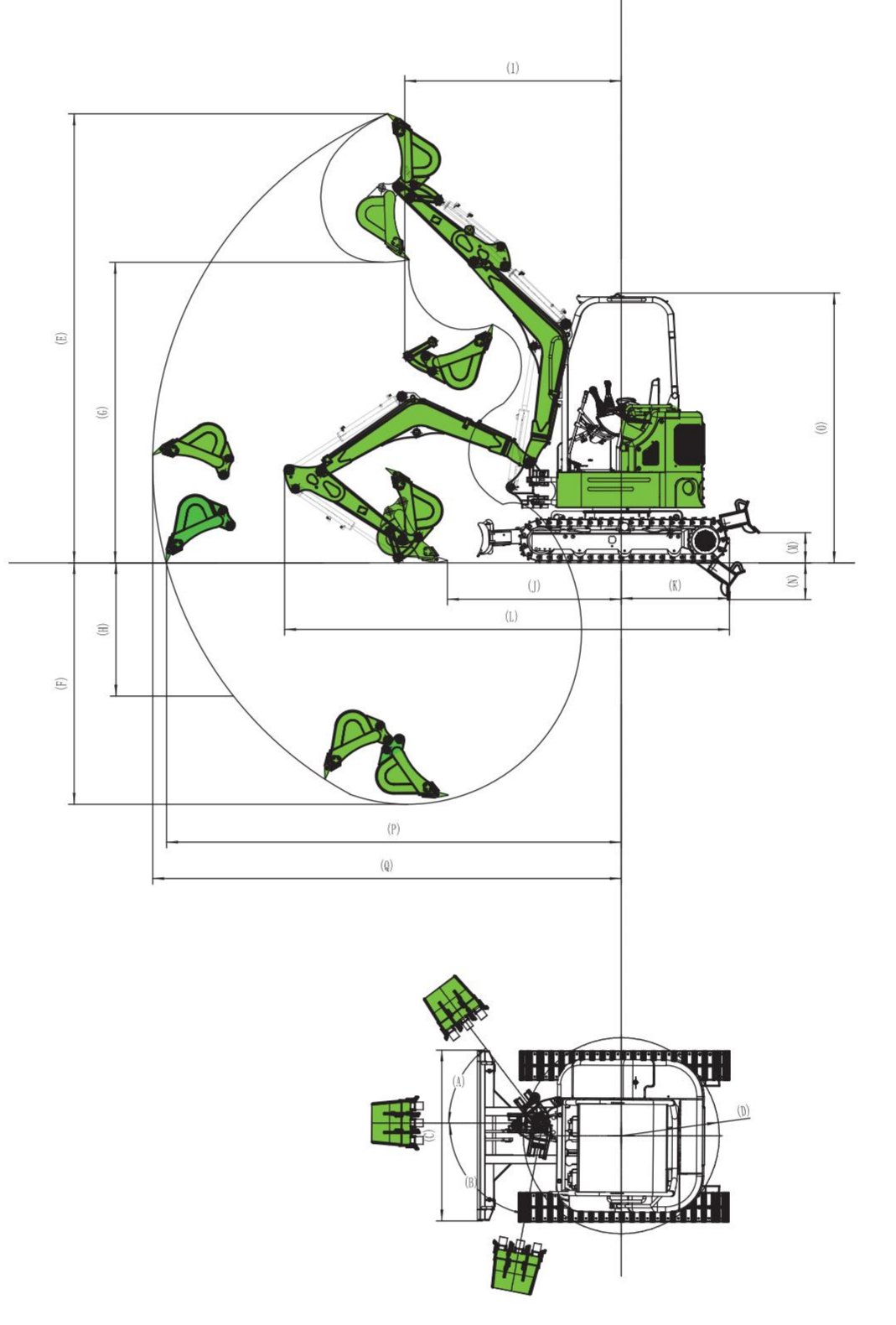

H25 Work Scope Diagram (Unit: mm)
| (A) | (B) | (C) | (D) | (E) | (F) | (G) | (H) | (I) |
| 53° | 79° | 300/1500 | 860 | 3940 | 2120 | 2640 | 1170 | 1900 |
| (J) | (K) | (L) | (M) | (N) | (0) | (P) | (Q) | |
| 1530 | 950 | 3820 | 270 | 320 | 2370 | 4000 | 4120 |
Model Number | Nuit | H25 | |
Bucket capacity | CM | 0.054 | |
Standard bucket width:with/without side teeth | MM | 450/400 | |
Operating weight | KG | 2,420 | |
Body size | Total length | MM | 3,910 |
Full height | MM | 2,370 | |
Overall width | MM | 1,300/1,500 | |
Minimum ground clearance | MM | 185 | |
| Engine | Model number | Yanmar3TNV80F | |
Total displacement | MM | 1.267 | |
Rated output power | Power kW/RPM | 15.2/2500 | |
Maxirmum excavation herght | MM | 3,945 | |
Mining performance | Maximum discharge height | MM | 2,660 |
Maximum digging depth | MM | 2, 120 | |
Maximum vertical digging depth | MM | 1,900 | |
Maximum excavation radius | MM | 4, 120 | |
Large arm offset:(left.right) | MM | 620/590 | |
Minimum front turning radius | MM | 1,850(1,430) | |
Minimum turning radius of the rear | MM | 710 | |
Maximum digging force | Kilonewtons | 18.4(1,880) | |
Model Number | Nuit | H25 | |
Caterpillar belt | Track type | lron track | |
Track width | MM | 250 | |
Walking part | Ttack length | MM | 1,860 |
Wheel pitch | MM | 1,475 | |
Track center distance | MM | 1,050/1,250 | |
Travel speed(low/high speed) | Km/h | 2.2/3.7 | |
Climbing ability | Angle | 30 | |
Turning speed(RPM) | 8.5 | ||
Dozer plate | Dozer plate | MM | 1,300/1,500 |
Dodging plate(height) | MM | 292 | |
Lift distance(GL up/down) | MM | 260/325 | |
Hydraulic pump type | Multipump system | ||
Rotary motor type | Plunger hydraulic motor | ||
Travel motor type | 2speed plunger hydraulic motor | ||
Fuel tank capacity | l | 27 | |
